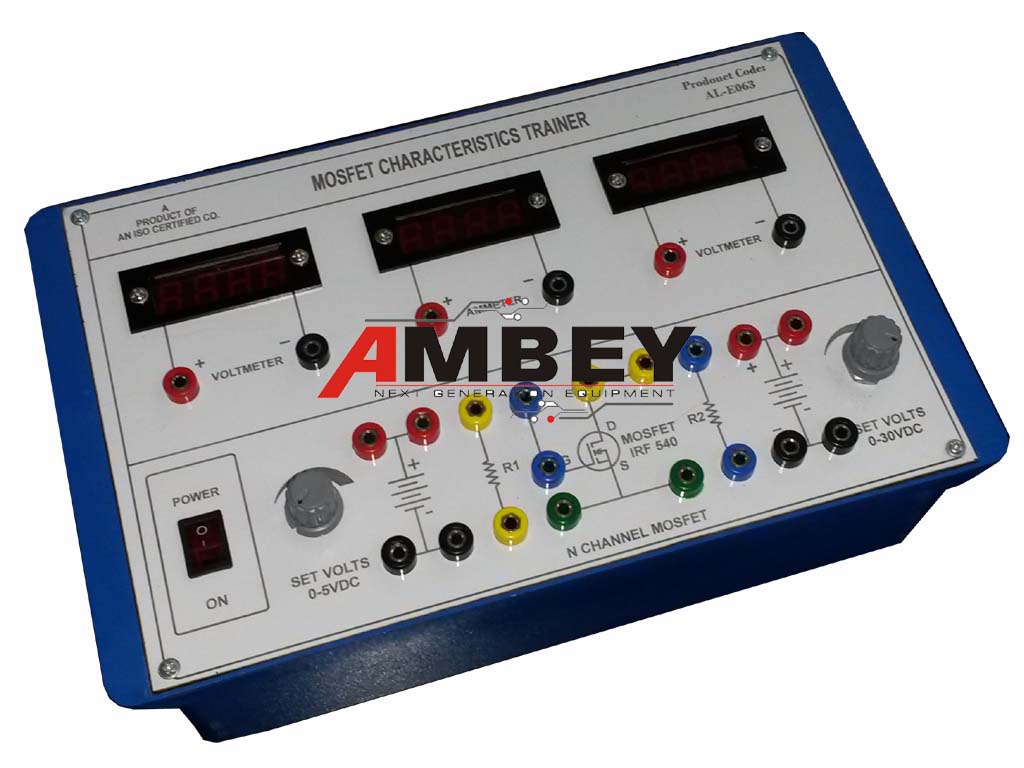

AL-E063 MOSFET CHARACTERISTICS TRAINER (DIGITAL)


Description:

Experiment: Characteristics of Mosfet

SPECIFICATIONS:

Digital Meters:

  1. Voltmeter 20V DC.
  2. Ammeter 200mA DC.
  3. Voltmeter 200V DC.

Power supplies:

  1. DC Supply IC Regulated 0-5V DC, 150mA.
  2. DC Supply IC Regulated 0-30V DC, 150mA.
  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
  • Fuse for Short Circuit protection

Components are mounted on the panels are:

  • Mosfet IRF540
  • Voltage Control through Potentiometer.

Salient Features:

  • Instruction manual.
  • Operated on Mains power 230V, 50Hz.
  • Patch Cords 4mm.
  • Supply provided through the 3 pin computer socket with appropriate fuse
  • The trainer is housed in ABS Plastic cabinet.
  • Size of the trainer set 12”x8”
