SCOPE OF LEARNING:

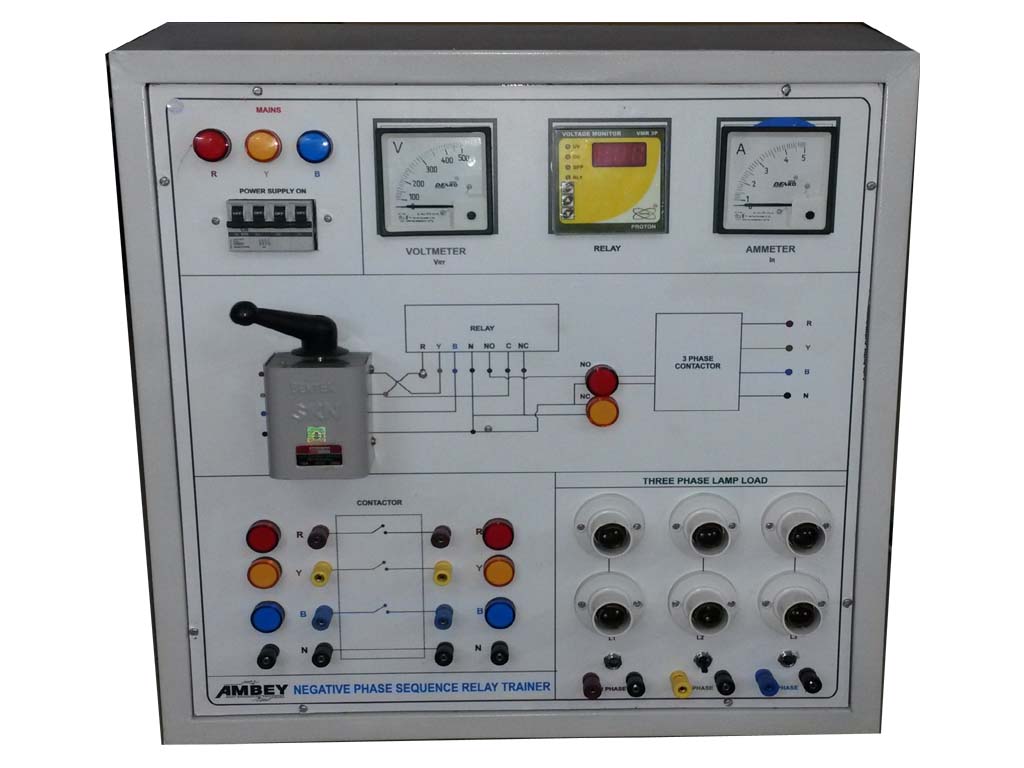

- Study of Static Negative Phase Sequence Relay Protection System
- TECHNICAL SPECIFICATIONS:
- Operated on Mains power 415V, 50Hz +10%
Components are mounted on the panels are:
- Reverse Power Relay
- Reverse and Forward Relay
- Controls With Switches
- Tripping With Indicators.
- Lamp Load (6 Bulbs with Switches Control)
- Front panel built with high class insulated Bakelite sheet with Sticker well printed circuits and symbols.
- Instruction manual.
- Patch Cords 4mm (Heavy Duty) 1Meter Length.
- High Voltage Test Points are Provided With 4mm Safety Sockets
- The trainer is housed in Metal cabinet.
- Short Circuit protection with the MCB.
- Size of the trainer set 18”x12”
