Product Overview

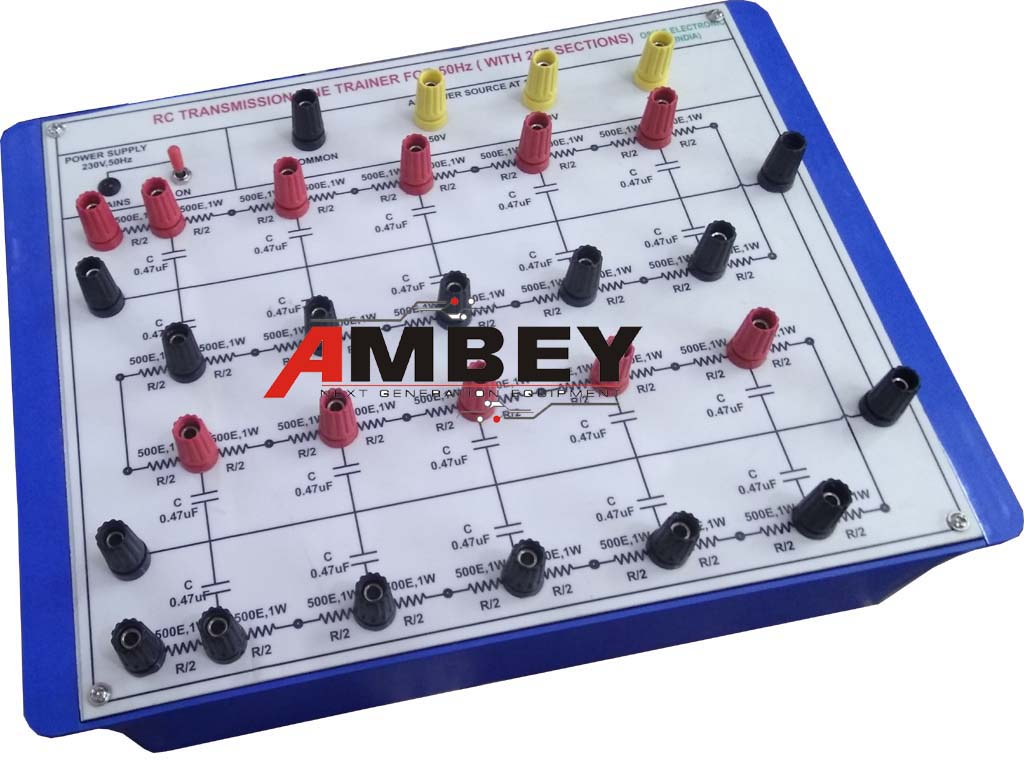

AL-E065A TRANSMISSION LINE TRAINER (RC COMPONENTS)


Discription:

SCOPE OF LEARNING:

Study of RC Transmission Line

  • TECHNICAL SPECIFICATIONS:

Power Supplies:

  • AC Supply 0-50-100-200V AC, 150mA.
    • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • 24T Section of RC Components
  • 500E, 1W Resistors mounted behind the panel
  • 0.47uF, 250V Capacitors mounted behind the panel

SALIENT FEATURES:

  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.
    • Instruction manual.
    • Connections are brought out through 4mm BTI-15 Terminals.
    • Patch Cords 4mm.
    • The trainer is housed in ABS Plastic cabinet.
    • Size of the trainer set 12”x10”

OPTIONAL ACCESSORIES:

  • Multimeter
  • CRO
