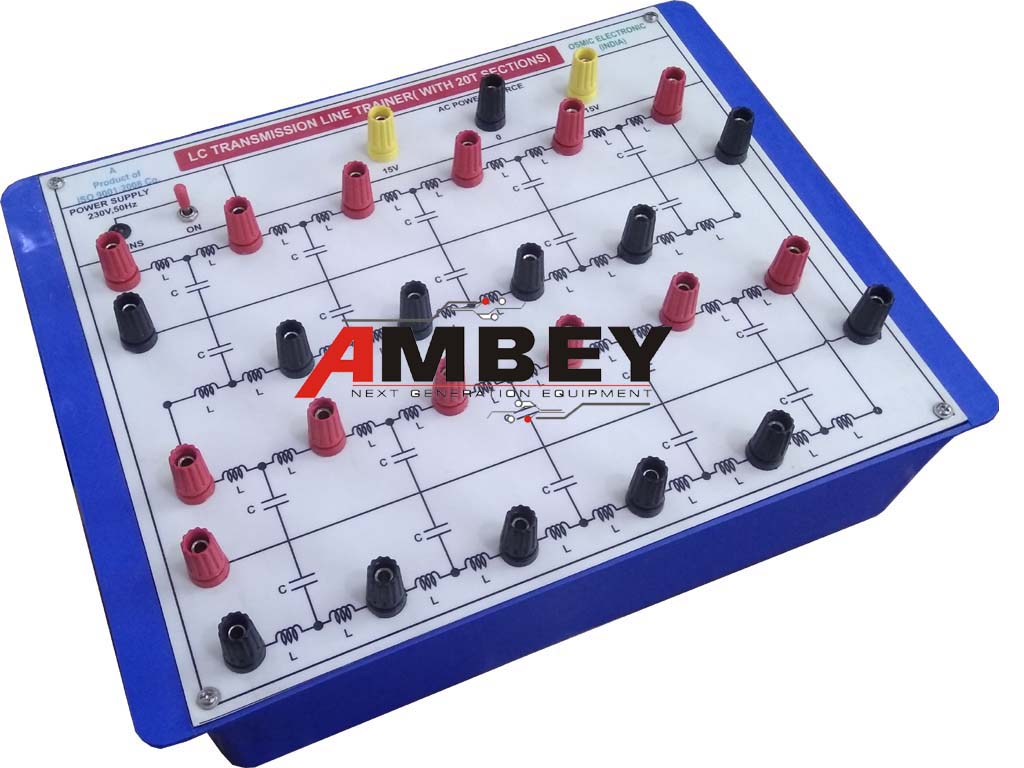

AL-E065B TRANSMISSION LINE TRAINER (LC COMPONENTS)


Discription:

SCOPE OF LEARNING:

Study of LC Transmission Line

  • TECHNICAL SPECIFICATIONS:

Power Supplies:

  • AC Supply 15-0-15V AC, 150mA.
    • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • 20T Section of LC Components
  • Inductors mounted behind the panel
  • Capacitors mounted behind the panel

SALIENT FEATURES:

  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.
    • Instruction manual.
    • Connections are brought out through 4mm BTI-15 Terminals.
    • Patch Cords 4mm.
    • The trainer is housed in ABS Plastic cabinet.
    • Size of the trainer set 12”x10”

OPTIONAL ACCESSORIES:

  • Multimeter
  • CRO
