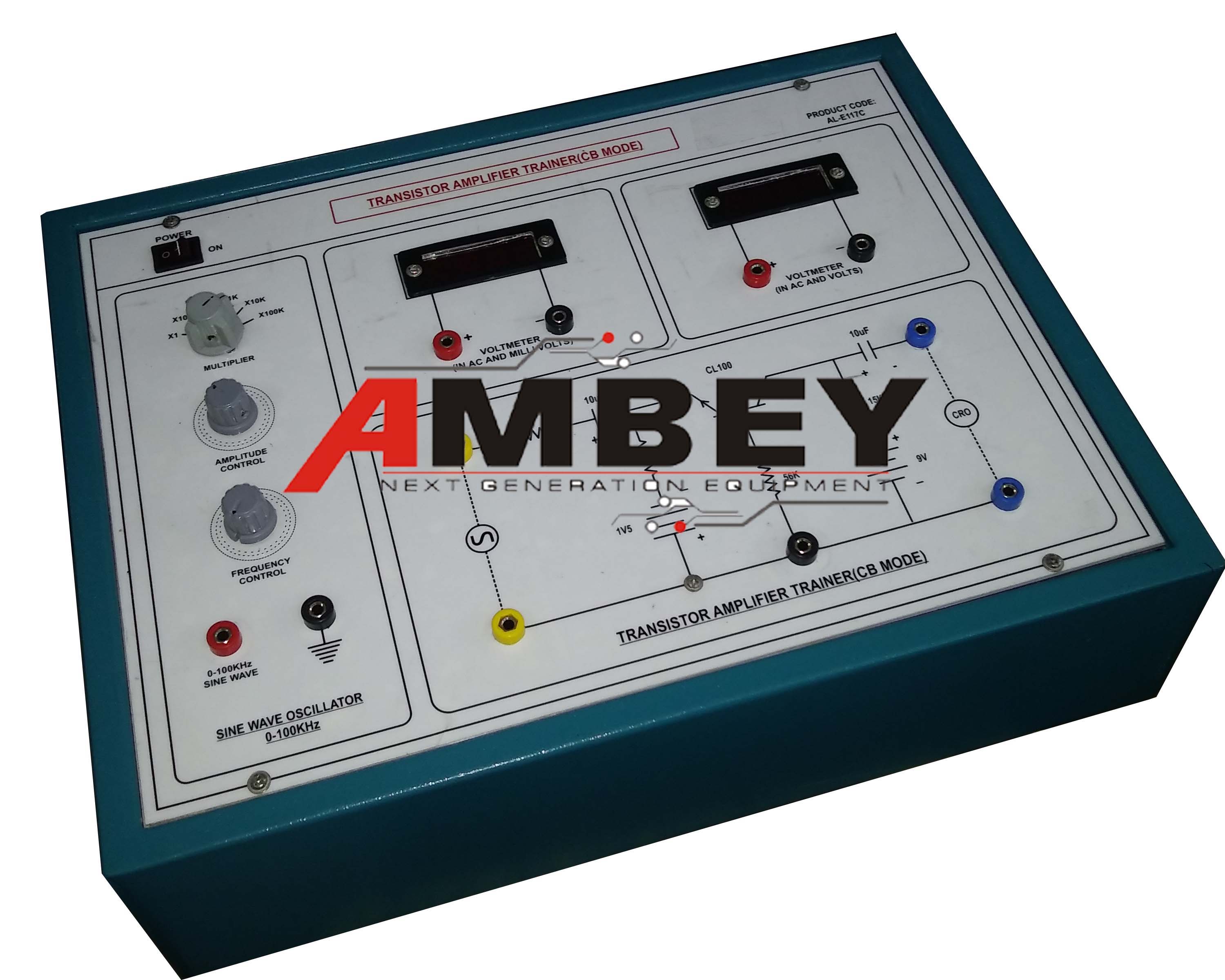

AL-E117C TRANSISTOR AMPLIFIER TRAINER WITH INBUILT SINE WAVE GENERATOR 0-100KHz AND AC MILLI VOLTMETER


Discription:

SCOPE OF LEARNING:

  • Study of Transistor Amplifier in Different Mode

1. Common Base

TECHNICAL SPECIFICATIONS:

Power Supplies:

  • DC Power Supply IC Regulated +9V DC, 150mA.
  • DC Power Supply IC Regulated -1.5V DC, 150mA.
    • Operated on Mains power 230V, 50Hz +10%

Sine Wave Oscillator:

• 0-100KHz Sine Wave Oscillator

Digital Meters:

• 3.5Digit AC Milli Voltmeter 200mV

• 3.5Digit AC  Voltmeter 20V

Components are mounted on the panels are:

  • Transistors
  • Resistors
  • Capacitors

SALIENT FEATURES:

  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
    • Fuse for Short Circuit protection
    • Instruction manual.
    • Connections are brought out through 4mm Colored Sockets.
    • Patch Cords 4mm.
    • The trainer is housed in ABS Plastic cabinet.
    • Size of the trainer set 12”x8”

OPTIONAL ACCESSORIES:

  • CRO
