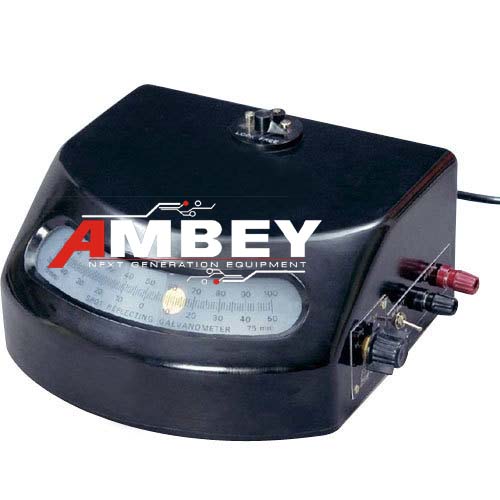

AL-E501A SPOT GALVANOMETER


Discription:

SCOPE OF LEARNING:

  • Spot Galvanometer finds extensive use as a D.C. null detector in wheat stone bridges and potentiometers
  • TECHNICAL SPECIFICATIONS:
    • MAINS: It is a' mains' operated instrument but can operate on a 6 volt battery also. There is provision to operate this instrument can be operated on both as well as main supply 220 volts, 50Hz or 6 Volt Capacity.
    • Light Source: The light Source is 6 Volt and 0.3Amp bulb giving a bright spot on the scale.
    • Construction: The galvanometer has built in lamp and scale arrangement and housed in a Bakelite case. The highly sensitive moving coil system is suspended in a taut band manner in a uniform field of permanent magnet.
    • Scale: The scales are 150mm long and end zero use.
    • Zero Adjustment: The spot of light can be set at any point on the scale with the help of zero adjusting knobs.
    • Sensitivity Control: The sensitivity is controlled by a 2-pole, 6 way switch. The switch Positions are D,1/10,1/100,1/1000 and s/c
    • Working Voltage  :  220VAC
    • Time Period        :  2 seconds



Cat. No

Galvanometer Resistance In ohms

Critical Damping Resistance

Sensitivity Voltage

502A

100 ohms

1000 ohms

0.04 to 0.05 µA per mm deflection

502B

600 ohms

7000 ohms

0.04 µA per mm deflection
