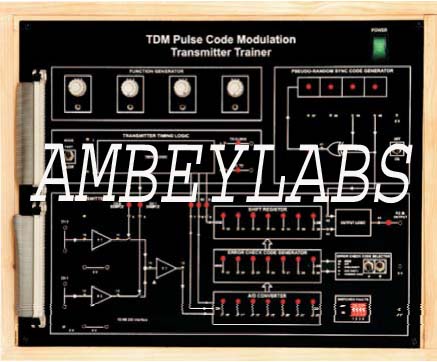

AL-E528 TDM PULSE CODE MODULATION TRANSMITTER TRAINER


Discription:

SCOPE OF LEARNING:

  • Study of Pulse Code Modulation. Study the principles of ADC &DAC Study of Pseudo Random Sequences
  • Study of effect of faults in Modulation & Demodulation Techniques.
  •  Study of Error Check Code Logic:
  • -­‐  None Parity Coding.
  • -­‐  Odd Parity Coding
  • -­‐  Even Parity Coding
  • -­‐   Hamming  Coding
  • TECHNICAL SPECIFICATIONS:

Generator:

  • Crystal Controlled Clock.
  • On-­‐board Sine wave generator (Synchronized)

Power Supply:

  • Fixed DC Power Supplies +12V,+5V DC, 250mA
  • Operated on Mains power 230V, 50Hz +10%

Components are mounted on the panels are:

  • IC
  • Capacitors
  • Resistors
  • Diode
  • PCM Transmitter.
  • Fast & Slow modes for real time operation and data flow examination. Error check code options (odd-­‐even parity, Hamming Code).
  • 4 Switched faults allow different Error Check Options.
  • PC -­‐  PC Communication via RS 232 interface

SALIENT FEATURES:

  • Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and      symbols.
    • Instruction manual.
    • Connections are brought out through 4mm Sockets.
    • Patch Cords 4mm.
    • The trainer is housed in ABS Plastic cabinet.
    • Size of the trainer set 12”x10”
