AL-E899 ELECTRICAL POWER SYSTEM TRAINER (ELECTRICAL POWER SIMULATOR, TRANSMISSION, DISTRIBUTION AND CONTROL)


Discription:

OVERVIEW:

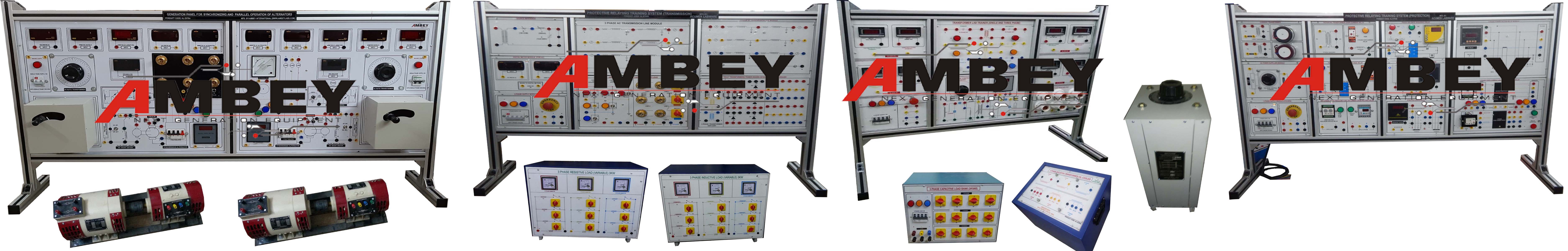

  • Miniature form of Generation, Transmission, Protection and Distribution System

WHAT WE ARE OFFERING:

  1. AL-E476: POWER GENEATION AND PARALLEL OPERATIONS OF TWO ALTERNATORS (SYNCHRONIZATION OF TWO ALTERNATORS)
  • DC Shunt Motor Coupled With Synchronous Generator 2Nos.
  • Power Generation and Parallel Operation of Synchronous Generator Control Panel 1Nos.
  1. AL-E281D: THREE PHASE TRANSMISSION LINE TRAINER
  • 3Phase Auto Transformer Unit
  • 3Phase Resistive Load
  • 3Phase Inductive Load
  • 3Phase Capacitive Load
  1. AL-E291A: 3 PHASE POWER DISTRIBUTION TRANSFORMER TRAINER
  • 3Phase Transformer Unit 1.5KVA
  • 3Phase Auto Transformer Unit
  1. AL-E704B: PROTECTIVE RELAYING TRAINING SYSTEM (PROTECTION)































AL-E476 PARALLEL OPERATIONS OF TWO ALTERNATORS (SYNCHRONIZATION OF TWO ALTERNATORS)

SCOPE OF LEARNING:

  • Study of Parallel  Operations of Two Ac Alternator (Synchronizing the 2 Alternator)
  • Study of Operation of DC Shunt Motor
  • Study of Operation of 3Phase Synchronous Generation.
  • Study of Dark Lamp Method using Parallel  Operations of Two Ac Alternator
  • Study of Bright Method using Parallel  Operations of Two Ac Alternator
  • TECHNICAL SPECIFICATIONS:

Power Supplies:

  • DC Power Supply 0-230V AT 2A (Field Control) 2Nos.
  • DC Power Supply +230V AT 2A (Field Control) 2Nos.
    • Operated on Mains power 230V, 50Hz +10%

Digital/Analog Meters:

  • Voltmeter DC 2Nos.
  • Frequency Monitoring Relay 2Nos.
  • Frequency Meter 2Nos.
  • Ammeter DC 4Nos.
    • Voltmeter AC 2Nos.
    • Ammeter AC 2Nos.
    • Synchroscope 1Nos.
    • RPM Meter 2Nos.
    • Multifunction Meter 2Nos.
    • Components are mounted on the panels are:
    • Three Phase Lamp Load Switched Control
    • Synchronizing Lines For Parallel Operations.
    • Output Through 4Pole MCB (For Alternators)
    • 3 Point Starter 2Nos.
    • Color Indication For Output
    • Variac (For Field Control Power Supply) 2Nos.

SALIENT FEATURES:

  • Voltage regulation within limit as per ISS.
  • Special guard also provided on the coupling to avoid any mis-happening during operation.
  • D.C. Motor Shunt 2HP coupled with A.C. Alternator
    1KVA (Separately or self Excited.
  • Front panel built with high class insulated Bakelite sheet with Sticker well printed circuits and symbols.
  • Instruction manual.
  • Patch Cords 4mm (Heavy Duty) 1Meter Length.
  • High Voltage Test Points are Provided With 4mm Safety Sockets
  • The trainer is housed in Metal cabinet.
  • Short Circuit protection with the MCB.
  • Size of the trainer set 65”x24”

OPTIONAL ACCESSORIES:

  • No

SCOPE OF SUPPLY:

  • DC Motor 2HP, 230V and AC Synchronous Alternator (1KW).  (2Nos.)
  • Synchronizing of Two Alternators Control Panel (1Nos.)

MOTOR SPECIFICATIONS:

  • DC Shunt Motor 2HP
  • Operating Voltage:230V
  • Type: DC
  • RPM: 1440 RPM.
  • Wattage: 1.5KW
  • Terminations: 4 BTI 15 Terminals
  • Shaft: Single
  • Frame:132
  • B3
  • SPDP
  • 1P23
  • 1C01
  • Solid Yoke Extension
  • Fitted on Metal Base.

GENERATOR SPECIFICATIONS:

  • AC Alternator 1KW
  • Operating Voltage:415V
  • Type: AC
  • RPM: 1440 RPM.
  • Wattage: 1KW
  • Terminations: 5 BTI 15 Terminals
  • Shaft: Single
  • Frame:132
  • B3
  • SPDP
  • 1P23
  • 1C01
  • Solid Yoke Extension
  • Fitted on Metal Base.



AL-E281D THREE PHASE TRANSMISSION LINE TRAINER

SCOPE OF LEARNING:

  • Study of Three Phase Transmission Lines
  • TECHNICAL SPECIFICATIONS:

Power Supplies:

  • AC Power Supply 0-415V AT 4A (Optional)
    • Operated on Mains power 415V, 50Hz +10%

Digital/Analog Meters:

  • Voltmeter 2 Nos.
  • Ammeter 2Nos.
  • 4A Variac (3 Phase)
  • Transmission Lines 400Km (Through Resistor-Capacitor and Inductors)

SALIENT FEATURES:

  • Front panel built with high class insulated Bakelite sheet with Sticker well printed circuits and symbols.
  • Instruction manual.
  • Patch Cords 4mm (Heavy Duty) 1Meter Length.
  • High Voltage Test Points are Provided With 4mm Safety Sockets
  • The trainer is housed in Metal cabinet.
  • Short Circuit protection with the MCB.
  • Size of the trainer set 30”x24”

ACCESSORIES:

  • Resistive Load
  • Capacitive Load
  • Inductive Load





















AL-E291A 3 PHASE POWER DISTRIBUTION TRANSFORMER TRAINER

SCOPE OF LEARNING:

  • Study of 3 Phase Transformer Distribution System
  • TECHNICAL SPECIFICATIONS:

Power Supplies:

  • AC Power Supply 0-415V AT 4A (Optional)
    • Operated on Mains power 415V, 50Hz +10%

Digital Meters:

  • Voltmeter (For Primary and Secondary)
  • Ammeter  (For Primary and Secondary)

Components are mounted on the panels are:

  • 3 Phase Lamp Load (Start Connected) Switched Control
  • 3 Phase Lamp Load Ring System
  • 3 Phase Transformer Unit (440V/220V) Copper Winding
  • Emergency Stop

SALIENT FEATURES:

  • Front panel built with high class insulated Bakelite sheet with Sticker well printed circuits and symbols.
  • Instruction manual.
  • Patch Cords 4mm (Heavy Duty) 1Meter Length.
  • High Voltage Test Points are Provided With 4mm Safety Sockets
  • The trainer is housed in Rack Type Channel Extruded Panel
  • Panel is modular based easy to place and remove the Module.
  • Short Circuit protection with the MCB.
  • Size of the trainer set 42”x24”

OPTIONAL ACCESSORIES:

  • Resistive Load.





AL-E704B PROTECTIVE RELAYING TRAINING SYSTEM (PROTECTION)

SCOPE OF LEARNING:

  • Study about different protection techniques
  • Current Transformer and Potential Transformer
  • Voltage Monitoring Relay (Single and Three Phase)
  • Over Current Relay (Single andThree Phase)
  • Reverse Power Relay
  • Phase Sequence Relay
  • Three Phase Power Factor Relay
  • Synchro Check Relay
  • Frequency Monitoring Relay (Three Phase)

 TECHNICAL SPECIFICATIONS:

  • MCB (Power Switch) : Three Phase 10A
  • Interconnections : 4mm Safety Socket
  • Current Transformer and Potential Transformer
  • Voltage Monitoring Relay (Single and Three Phase)
  • Over Current Relay (Single andThree Phase)
  • Reverse Power Relay
  • Phase Sequence Relay
  • Three Phase Power Factor Relay
  • Synchro Check Relay
  • Frequency Monitoring Relay (Three Phase)
  • Wattmeter/ Var Meter
  • Power Factor Meter

Power supplies:

  • Single Phase AC Power Supply : 220V, 50/60Hz
  • Three Phase AC Power Supply :230V Phase voltage, 415 Line voltage ± 10% 50 Hz
  • Operated on Mains power 415V, 50Hz +10%

SALIENT FEATURES:

  • Light Indicator for Mains.
  • Front panel built with high class insulated Printed Bakelite/Aluminum Board sheet with well printed circuits and symbols.
  • 4 Pole MCB for Short Circuit protection
  • Instruction manual.
  • Emergency Stop also Provided
  • Connections are brought out through 4mm Colored Safety Sockets.
  • Patch Cords 4mm
  • The trainer is housed in Modular Based Rack Type Aluminum Extruded Metal cabinet.
  • Size of the trainer set 54’’x24”

OPTIONAL ACCESSORIES:

  • No

SCOPE OF SUPPLY (PACKING LIST):

  • Patch Cords 4mm
  • PROTECTIVE RELAYING TRAINING SYSTEM (PROTECTION)
