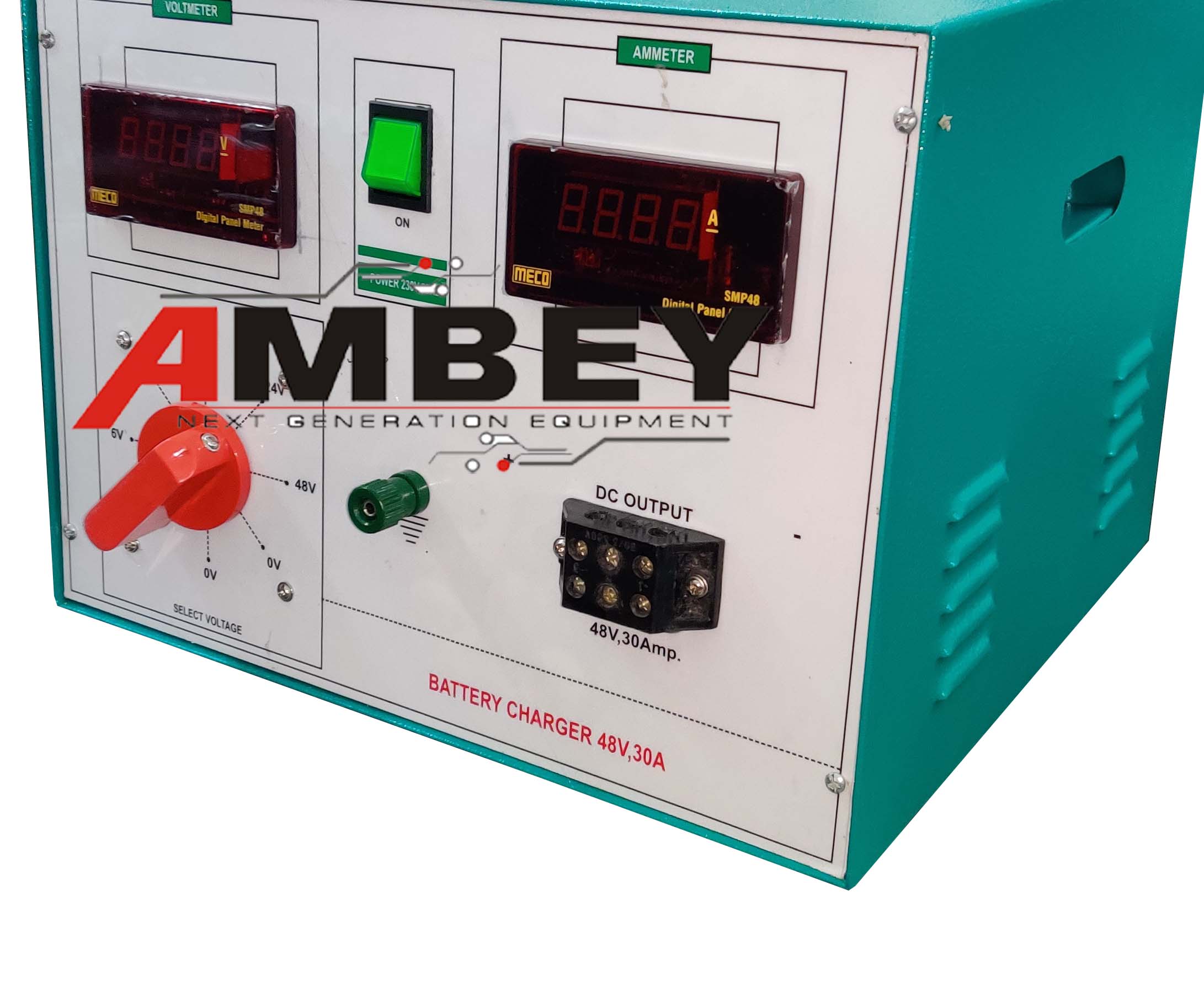

AL-E586F BATTERY CHARGER 48V, 30A
Project Information
- Category: MEASURING INSTRUMENTS
- Sub Category: POWER SUPPLIES
- Model Number: AL-E586F
Description
SCOPE OF LEARNING:
Study the techniques of Battery Charging
- TECHNICAL SPECIFICATIONS:
Power Supplies:
- DC Power Supply48V DC, 30A
- Operated on Mains power 230V, 50Hz +10%
Digital Meters:
- Voltmeter 200V
- Ammeter 60A (With Shunt)
- Technical specifications:
- Output voltage:
- 0-48VDC (ISOLATED)
- Output current:
0-30A
- Voltage Selection through Rotary Switch 40A:
0-6-9-12-18-24-48V
- Charging Indication:
Through LED Indication.
- DC Rectifier:
DC rectified through 40A Diodes (4Nos.) in Bridge Configuration.
SALIENT FEATURES:
- Instruction manual.
- Connections are brought out through 4mm Colored BTI-15 Terminals.
- Power Supply is housed in Metal cabinet.
- Size of Power Supply is Approx 14”x10”
- Short Circuit Protection Through MCB
- Power Indication through 24mm Red Indicator.
OPTIONAL ACCESSORIES:
- No
